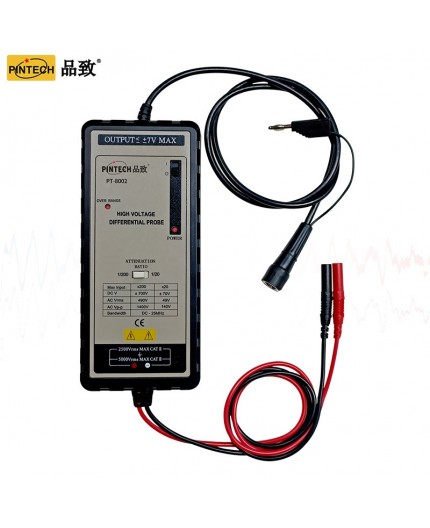

Differential probe x20/x200, 140/1400V, 25MHz.

€450.00
Tax excluded 1-3 working days

Volume discounts

Quantity Unit price You Save
2 €425.00 Up to €50.00
5 €370.00 Up to €400.00
Quantity
Available (1)

Differential probe 20:1/200:1, bandwidth 25MHz., Input AC 140/1400V. Accuracy ±2%. Supplied with power supply but can also be powered by AA batteries.

8888PR8002
1 Item

Data sheet

Manufacturer P/N
PT-8002
Impedance
Between inputs : 8MΩ/0,59pF - Each input to ground : 4MΩ/1,18pF
Attenuation Ratio
20:1/200:1
System Bandwidth (-3dB)
25MHz
Probe Risetime
14 ns
Input Voltage
AC: 140V@x20 / 1400V@x200 - DC: 70V@x20 / 700V@x200
Product category
Differential probes
Operative Temperature Range
0°C / +50°C
Accuracy
±2%
Output (into 50kΩ load)
7V
Offset (typical)
＜±5mV
Oscilloscope input impedance
1MΩ
CMRR
50Hz:＞80dB - 20kHz:＞60dB
Operating Humidity Range
20-75%RH
Weight
425 grams
Size
187 x 83 x 41 mm.
