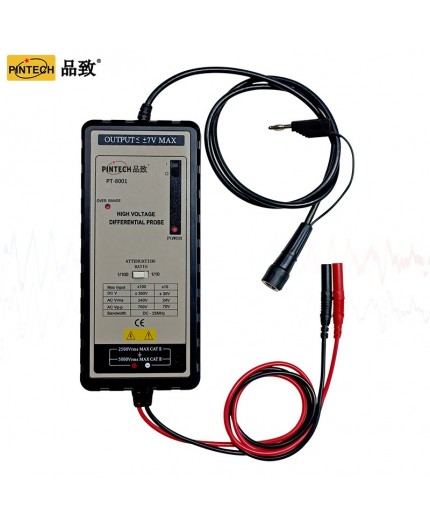

Differential probe x10/x100, 70/700V, 25MHz.

€410.00
Tax excluded 1-3 working days

Volume discounts

Quantity Unit price You Save
2 €385.00 Up to €50.00
5 €310.00 Up to €500.00
Quantity
Available (1)

Differential probe 10:1/100:1, bandwidth 25MHz., Input AC 70/700V. Accuracy ±2%. Supplied with power supply but can also be powered by AA batteries.

8888PR8001
1 Item

Data sheet

Manufacturer P/N
PT-8001
Impedance
Between inputs : 4MΩ/1pF - Each input to ground : 2MΩ/2pF
Attenuation Ratio
10:1/100:1
System Bandwidth (-3dB)
25MHz
Probe Risetime
14 ns
Input Voltage
AC: 70V@x10 / 700V@x100 - DC: 35V@x10 / 350V@x100
Product category
Differential probes
Operative Temperature Range
0°C / +50°C
Accuracy
±2%
Output (into 50kΩ load)
7V
Offset (typical)
＜±5mV
Oscilloscope input impedance
1MΩ
CMRR
50Hz:＞80dB - 20kHz:＞66dB
Operating Humidity Range
20-75%RH
Weight
425 grams
Size
187 x 83 x 41 mm.
