Ø4mm. plug gold-plated with M5 thread.
€2.63
1-3 working days

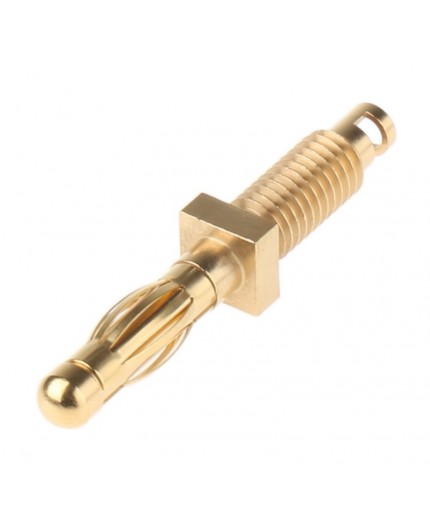

Ø4mm. plug made out of gold-plated brass. Thread M5 and solder connection.
8804SF1501
800 Items
Data sheet
- Manufacturer P/N
- 22.1051
- Type
- SA401
- Rated Current
- 50A
- Conductor Material
- AuNi coated brass
- Product category
- Ø4mm. threaded plugs
- Operative Temperature Range
- max. 150°C
- Thread
- M5
- Withdrawal force (N)
- ~5
- Contact resistance (mΩ)
- 0.3
